PowerResinEu

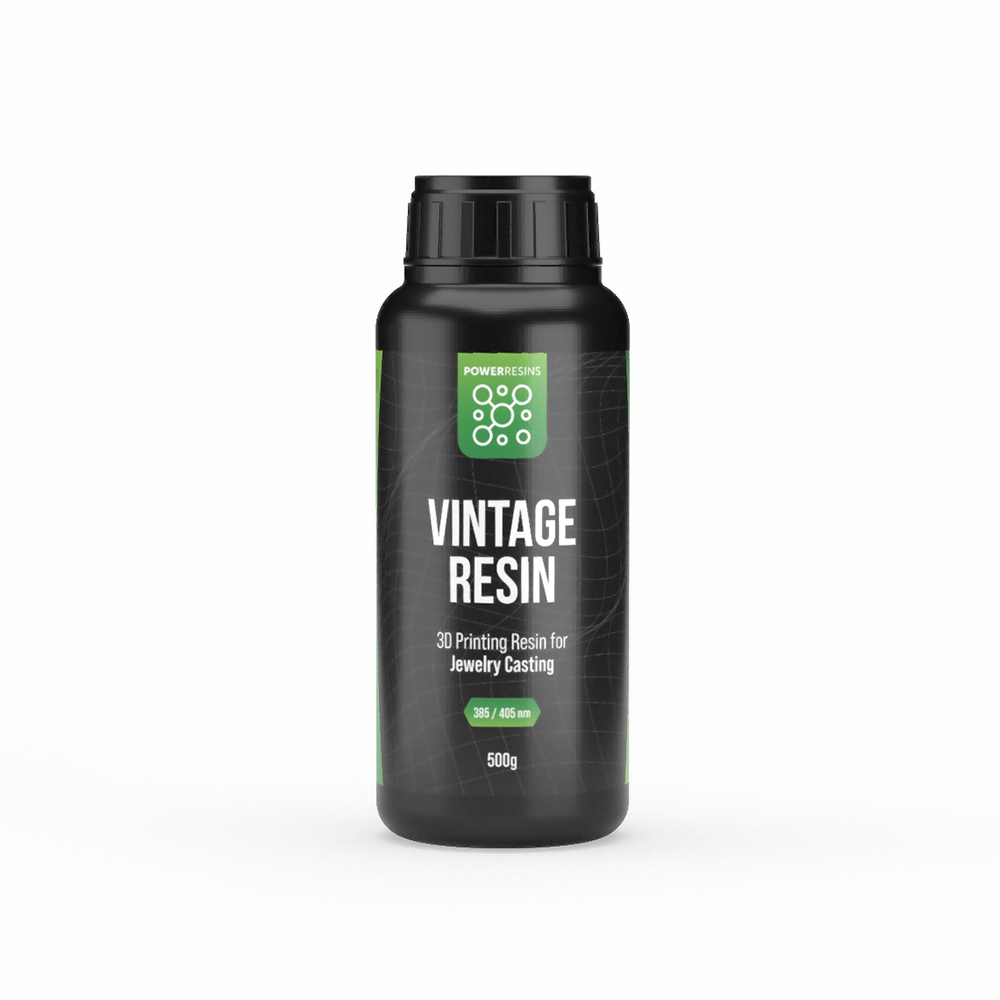

VINTAGE

VINTAGE

$299.99 USD
$299.99 USD
Sale Sold out
Shipping calculated at checkout.
Weight

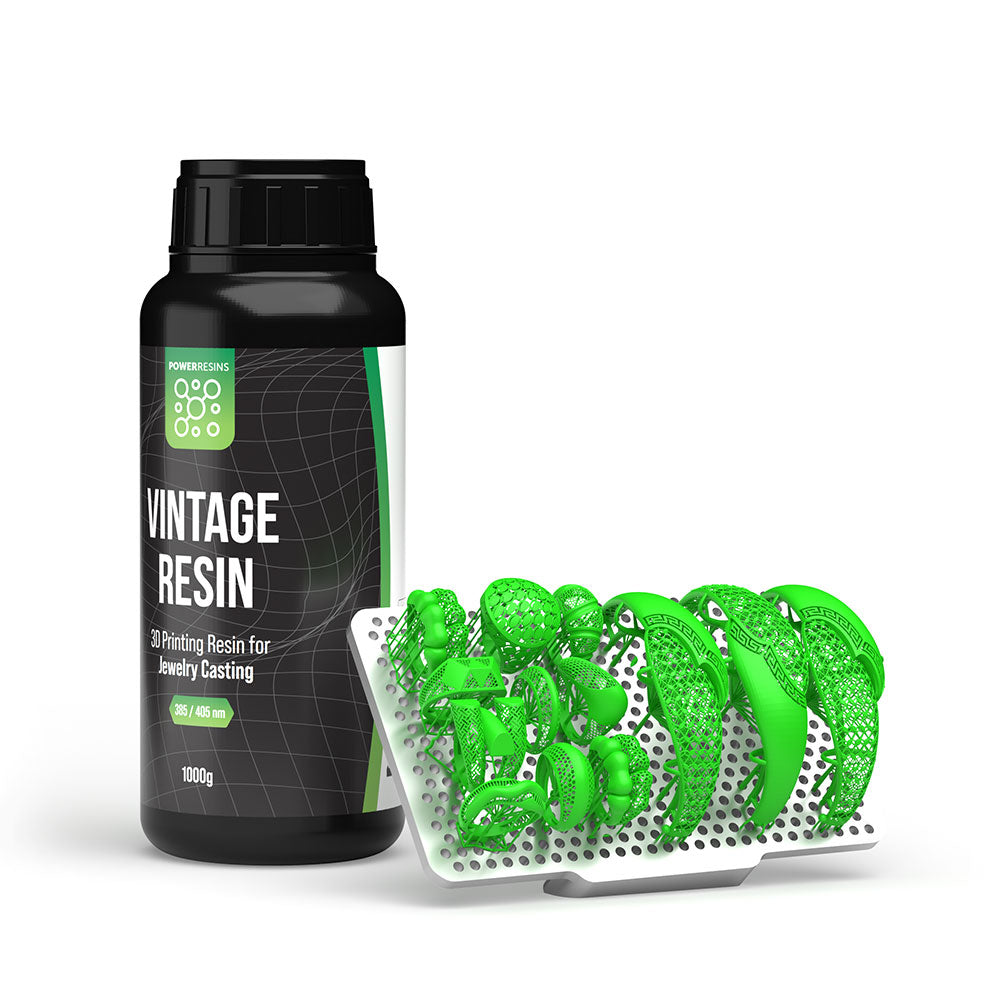

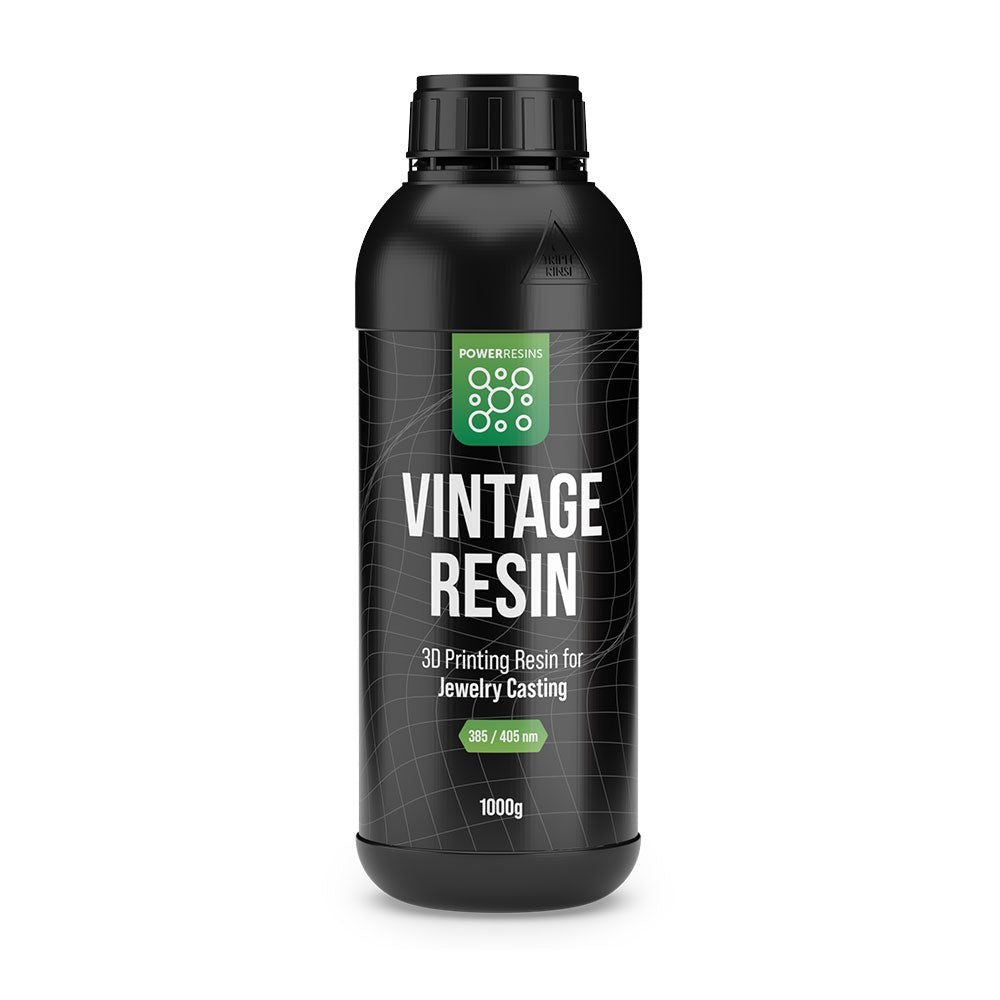

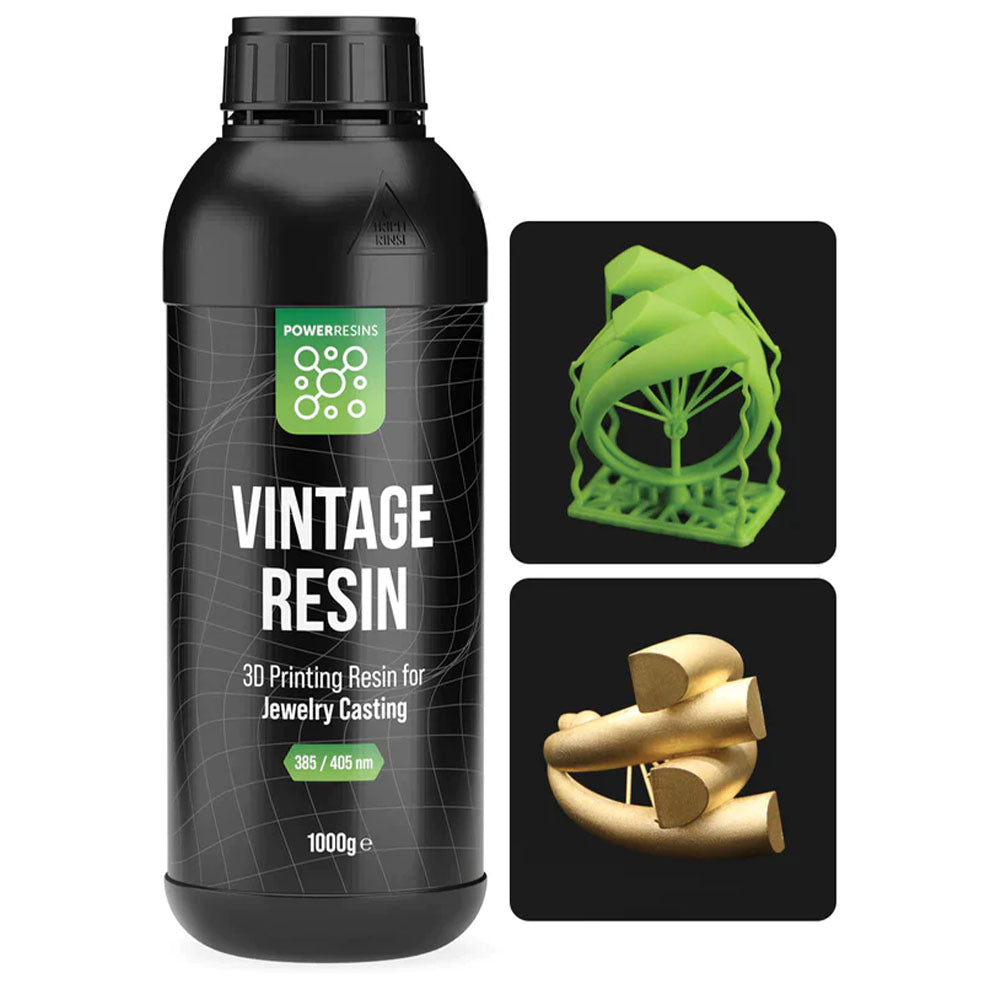

PowerResins most advanced casting resin, the VINTAGE!

VINTAGE resin offers a versatile one-stop solution for all types of jewelry manufacturing needs, offering superb direct casting results with an unseen non-shrinking formula allowing you an easy ash-free resin casting process like the traditional lost wax casting . With VINTAGE resin, compromise is a thing of the past; enjoy smoother surfaces and razor-sharp edges in every print. Additionally, it's perfectly tailored for intricate stone settings, ensuring precision and quality in every piece.

  • Shrinkage rate is less than %1
  • Ash-free casting like a traditional wax
  • No need post curing
  • Perfect for stone settings
  • Find here printing parameters for DLP and LCD printers.

If you're using a third-party printer without a built-in heater, we recommend preheating the resin to 37°C for optimal results.

Disclaimer: All orders shipped outside the United States are subject to import taxes, duties, and fees, which are the responsibility of the customer. Please ensure you are aware of and prepared to cover any applicable import costs when placing an international order.

View full details

Product Description

Product Features

  • Shrinkage rate is less than 1%
  • Ash-free casting like a wax
  • No need for post curing
  • Perfect for stone settings
  • Find here printing parameters for DLP and LCD printers

Material Properties

Material PropertiesValueStandardTensile strength22 MPaASTM D638Flexural strength45 MPaASTM D790-02Flexural modulus1120 MPaASTM D790-02Shore HardnessDASTM D2240Density1.1 g/cm3 at 23oCASTM D1475Viscosity600 - 650 mPa.s at 23oCDIN 53211-4ColorOpaque Green

Post Process

1- Washing

After the printing is completed, wash the part as attached to the building plate with ethyl alcohol (>%90) or isopropyl alcohol (>%90) for 5 minutes. Make sure that alcohol covers the part entirely when washing. Do not over-wash, it may cause deterioration in dimensions of the part.

2- Drying

Use air-compressor to dry the washed part. Make sure that the part is dry and uncured resin is cleaned up completely. If still uncured resin left on the part, wash it with fresh alcohol and dry again.

3- Part Removal

Remove the printed part from the building plate using a scraping tool. Be very careful not to damage your hand and the model.

4- No need post UV curing! Enjoy your casting.

Storage Conditions

Store the PowerResins Vintage bottle in dark and moisture free place at room temperature (20-24 °C).

Do not forget shaking the resin well before use.

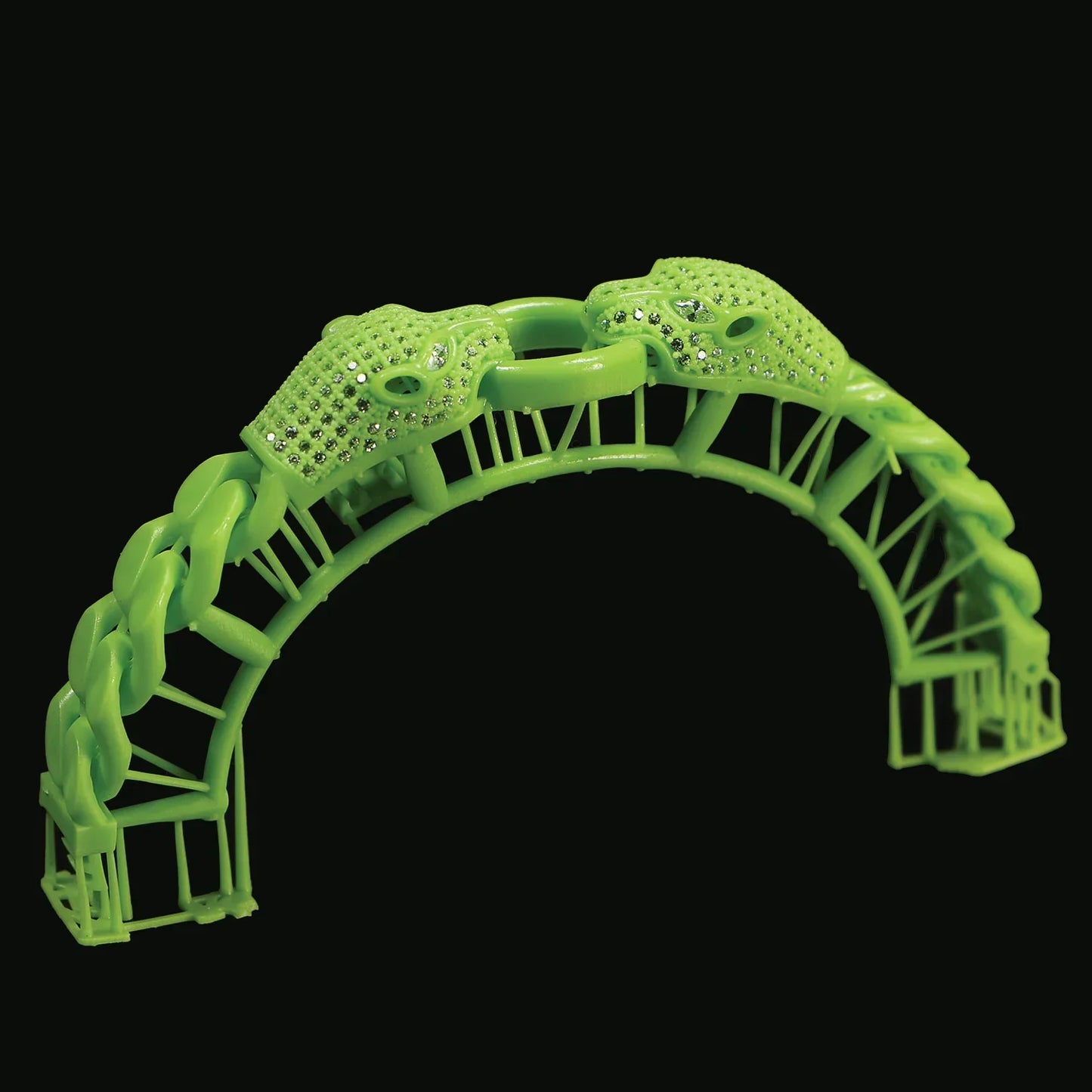

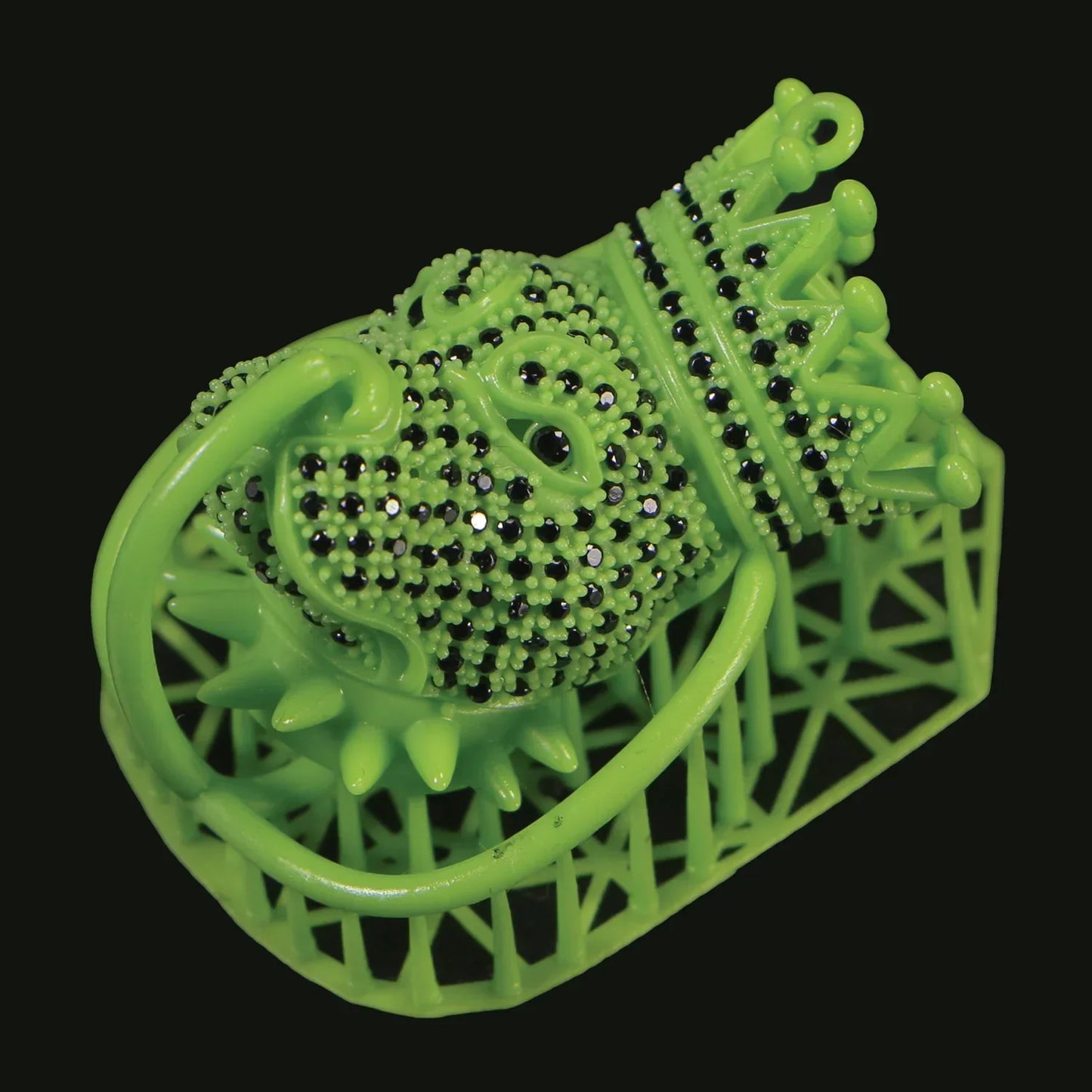

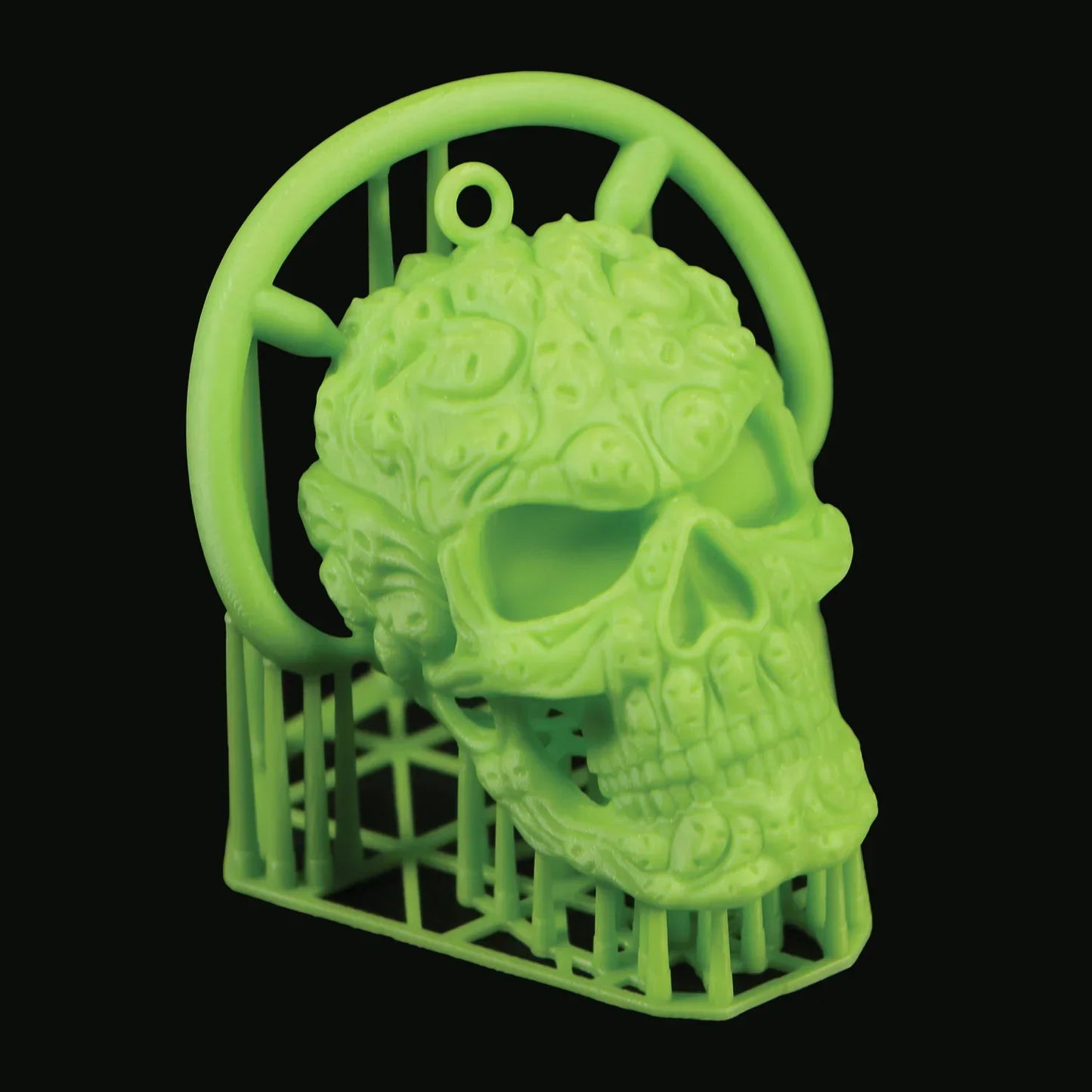

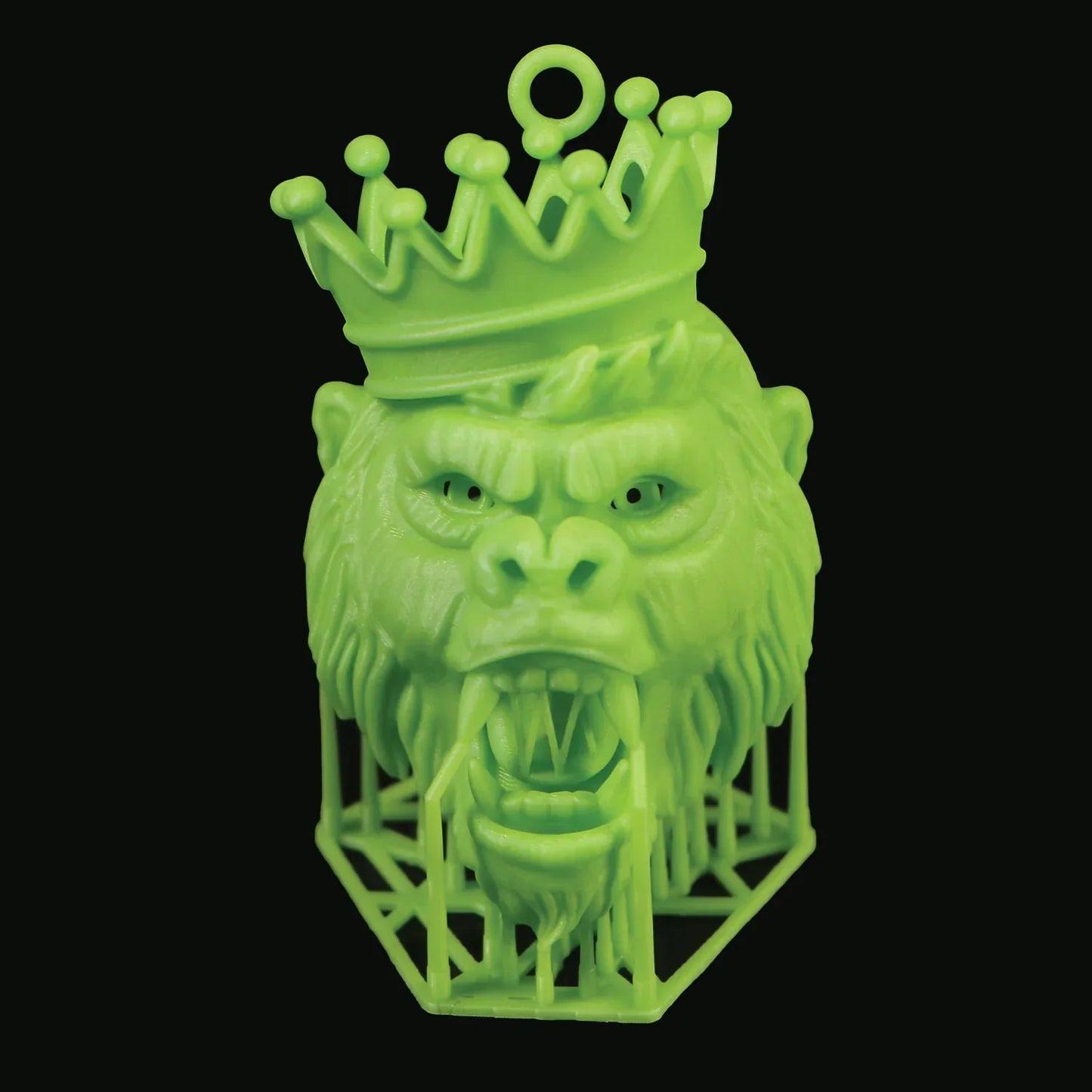

  • SUITABLE ALL JEWELRY DESIGNS

    Stone settings, surface models, thin string filigree models up to minimum wall thickness 0.25mm.

  • NO SHRINKAGE

    Vintage resin has almost no shrinkage with a shrinkage rate below %1.

  • %100 ASH-FREE CASTING

    Easily cast your jewelry models with Optima prestige, Omnicast, Ransom & Randolph.

  • NO NEED POST UV CURING

    After printing simply wash and dry and get it ready to be casted.
