PowerResinsUS
GUARD
GUARD
Couldn't load pickup availability

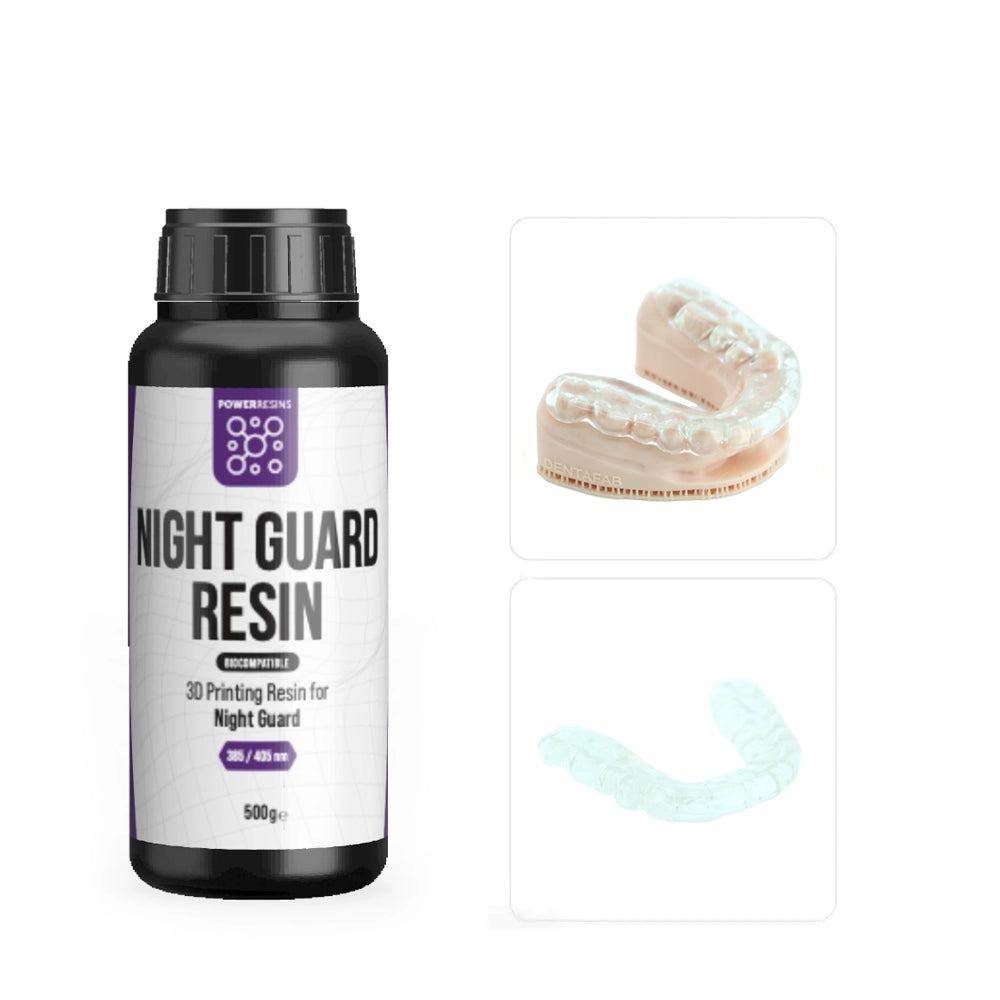

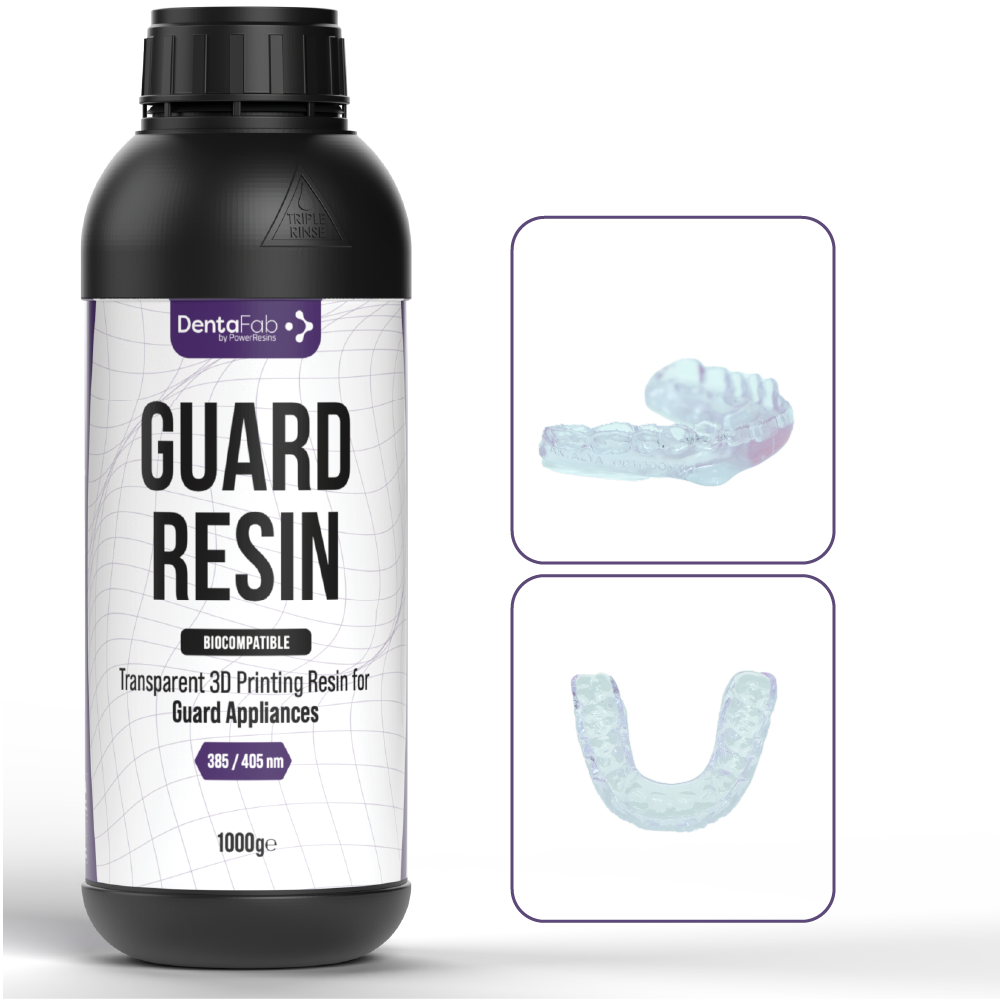

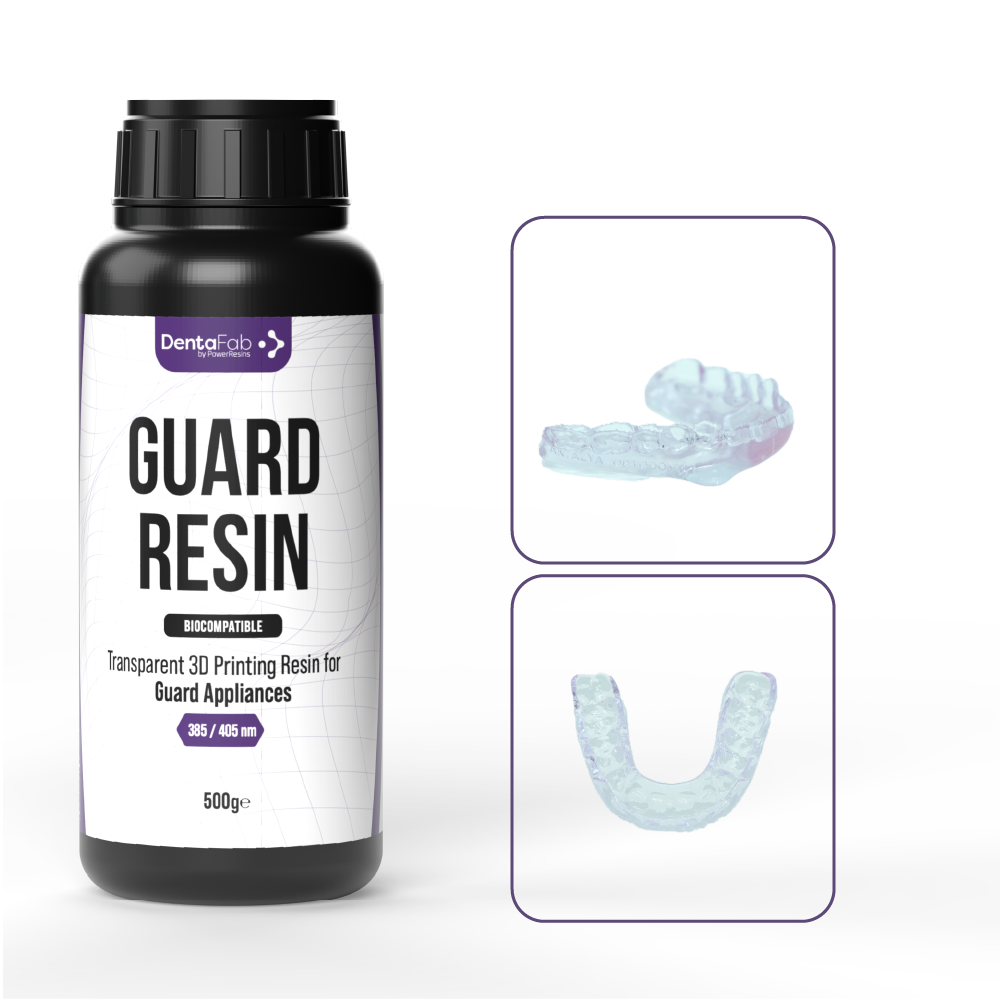

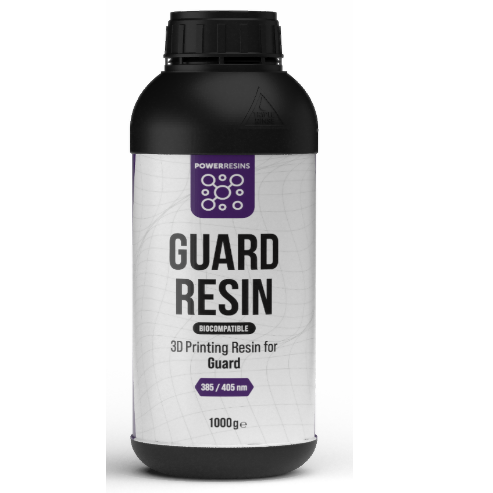

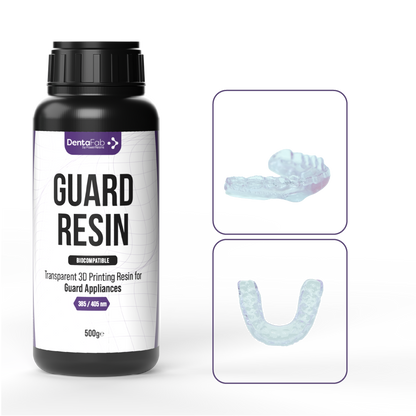

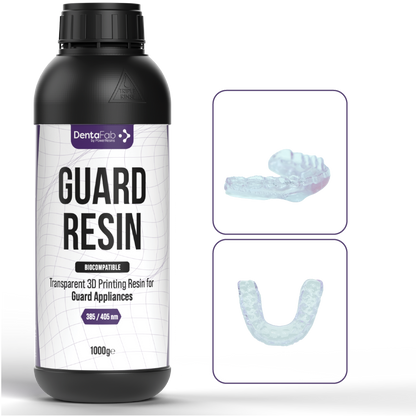

PowerResins NIGHT GUARD Resin is a specially formulated biocompatible 3D printing clear resin to help prevent parafunctional activities such as teeth clenching and grinding as bruxism and temporomandibular joint disorders. This resin not only protects your teeth and jaw joints but also contributes to alleviating symptoms.
- High-precision printing for night guards, splints, and protective dental appliances, delivering clean margin lines and excellent anatomical detail.
- Designed for direct intraoral appliances, enabling predictable fit, smooth surfaces, and reliable long-term performance.
- MMA-free, low-odor organic formulation, developed to enhance patient comfort and improve laboratory handling.
- Biocompatible (Class I, CE) and produced under ISO 13485:2016 quality management standards.
- Suitable for a wide range of 405 nm DLP and LCD 3D printers
Find the validated printer list and recommended settings at powerresins.com.
Disclaimer: All orders shipped outside the United States are subject to import taxes, duties, and fees, which are the responsibility of the customer. Please ensure you are aware of and prepared to cover any applicable import costs when placing an international order.
You can download the full IFU by clicking here
Product Description
Product Features
- Biocompatible (Class I, CE) photopolymer for night guards / protective splints
- Designed for LCD/DLP 3D printers; see Printer Settings on powerresins.com for optimization
- Prints clear parts suitable for finishing and polishing
- Use with a dedicated resin tank, printing tray, and finishing kit for full compatibility and biocompatibility
Material Properties
Material Properties
- Color: Transparent Purple
- Viscosity: 500–1,000 mPa·s (23 °C)
- Density: 1.1 g/cm³ (23 °C)
- Wavelength: 405 nm
- Flexural Strength: > 100 MPa (after proper post-cure)
- Flexural Modulus: > 2,900 MPa (after proper post-cure)
- Shore Hardness (D): > 65 (after proper post-cure)
Post Process
1- Washing
After printing, remove the build platform and separate the model. Cut supports. Air hold to blow off excess resin, then soak in hot water at 80 °C for 5 minutes. Do not use alcohol for washing; changing this sequence may cause visual damage.
2- Drying
Remove from water and dry completely with airflow/compressed air. Make sure no moisture or uncured resin remains on the surface before curing.
3- Part Removal / Finishing
Carefully remove remaining supports using appropriate tools. Avoid damaging margins and surface detail; finish/polish as needed.
4- Post Curing
Option 1 — Oto-Flash G171
Place the printed and washed/dried part into the Oto-Flash G171 chamber.
Cure with 1000 flashes under nitrogen atmosphere.
After curing, the product is ready for use.
Note: This method provides high mechanical performance when used according to the recommended settings.
Option 2 — Medifive TwinCure
Place the part into a transparent container filled with 20 °C glycerin.
Place the container into the TwinCure device and close the lid.
Cure for 10 minutes at Level 3.
Rinse with clean water to fully remove glycerin residue.
Dry with airflow and the part is ready for use.
Important: Curing outside the recommended settings may reduce mechanical properties and biocompatibility. Wear nitrile gloves and eye protection during finishing.
Storage Conditions
- Store tightly closed between 5–25 °C in a dry, well-ventilated place
- Keep away from sunlight, sparks, and open flames
- Supplied in light-proof, sealed bottles; shelf life is 2 years from production
